数据绑定/Data Binding

Data binding is a powerful new addition to the Fyne toolkit that was introduced in version v2.0.0. By using data binding we can avoid manually managing many standard objects like Labels, Buttons and Lists.

The builtin bindings support many primitive types (like Int, String, Float etc), lists (such as StringList, BoolList) as well as Map and Struct bindings. Each of these types can be created using a simple constructor function. For example to create a new string binding with a zero value you can use binding.NewString(). You can get or set the value of most data bindings using Get and Set methods.

It is also possible to bind to an existing value using similar functions who’s names start Bind and they all accept a pointer to the type bound. To bind to an existing int we could use binding.BindInt(&myInt). By keeping a reference to a bound value instead of the original variable we can configure widgets and functions to respond to any changes automatically. If you change the external data directly, be sure to call Reload() to ensure that the binding system reads the new value.

package main

import (
	"log"

	"fyne.io/fyne/v2/data/binding"
)

func main() {
	boundString := binding.NewString()
	s, _ := boundString.Get()
	log.Printf("Bound = '%s'", s)

	myInt := 5
	boundInt := binding.BindInt(&myInt)
	i, _ := boundInt.Get()
	log.Printf("Source = %d, bound = %d", myInt, i)
}

绑定简单的组件/Binding Simple Widgets

The simplest form of binding a widget is to pass it a bound item as a value instead of a static value. Many widgets provide a WithData constructor that will accept a typed data binding item. To set up the binding all you need to do is pass the right type in.

Although this may not look like much of a benefit in the initial code you can then see how it ensures that the displayed content is always up to date with the source of the data. You will notice how we did not need to call Refresh() on the Label widget or even keep a reference to it and yet it updates appropriately.

package main

import (
	"time"

	"fyne.io/fyne/v2/app"
	"fyne.io/fyne/v2/data/binding"
	"fyne.io/fyne/v2/widget"
)

func main() {
	myApp := app.New()
	w := myApp.NewWindow("Simple")

	str := binding.NewString()
	str.Set("Initial value")

	text := widget.NewLabelWithData(str)
	w.SetContent(text)

	go func() {
		time.Sleep(time.Second * 2)
		str.Set("A new string")
	}()

	w.ShowAndRun()
}

双向绑定/Two-Way Binding

So far we have looked at data binding as a way of keeping our user interface elements up to date. Far more common, however, is the need to update values from the UI widgets and keep the data up to date everywhere. Thankfully the bindings provided in Fyne are “two-way” which means that values can be pushed into them as well as read out. The change in data will be communicated to all connected code without any additional code.

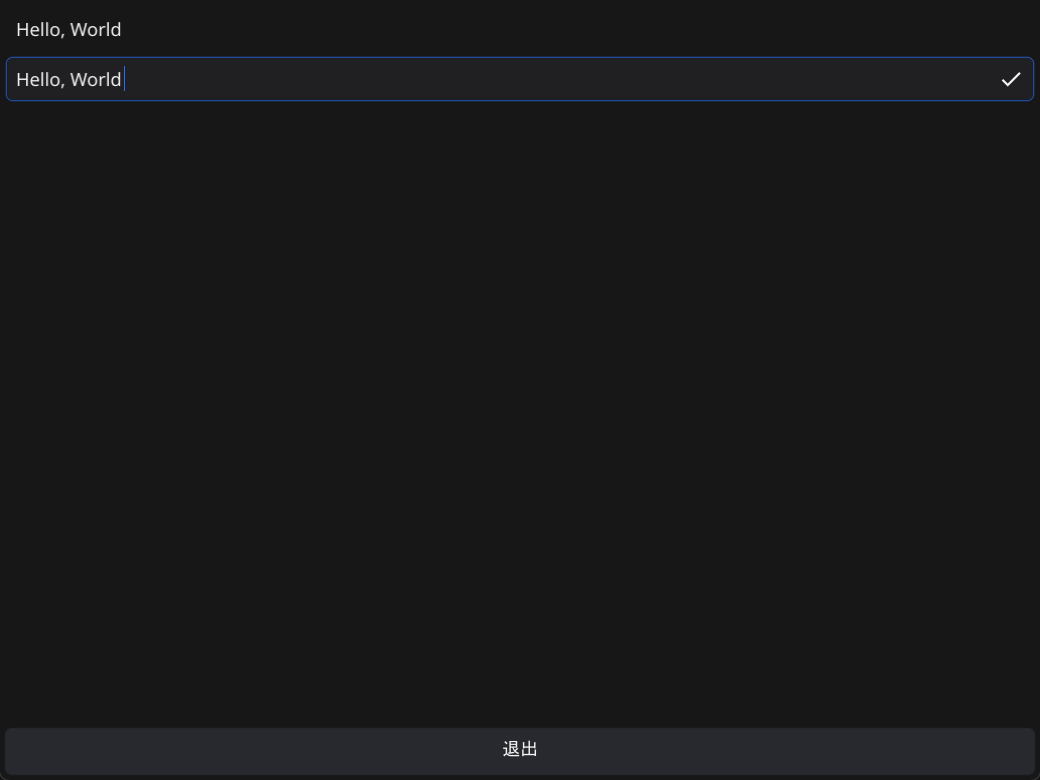

To see this in action we can update the last test app to display a Label and an Entry that are bound to the same value. By setting this up you can see that editing the value through the entry will update the text in the label as well. This is all possible without calling refresh or referencing the widgets in our code.

By moving your app to use data binding you can stop saving pointers to all your widgets. By instead capturing your data as a set of bound values your user interface can be completely separate code. Cleaner to read and easier to manage.

package main

import (
	"fyne.io/fyne/v2/app"
	"fyne.io/fyne/v2/container"
	"fyne.io/fyne/v2/data/binding"
	"fyne.io/fyne/v2/widget"
)

func main() {
	myApp := app.New()
	w := myApp.NewWindow("Two Way")

	str := binding.NewString()
	str.Set("Hi!")

	w.SetContent(container.NewVBox(
		widget.NewLabelWithData(str),
		widget.NewEntryWithData(str),
	))

	w.ShowAndRun()
}

数据转换/Data Conversion

So far we have used data binding where the type of data matches the output type (for example String and Label or Entry). Often it will be desirable to present data that is not already in the correct format. To do this the binding package provides a number of helpful conversion functions.

Most commonly this will be used to convert different types of data into strings for displaying in Label or Entry widgets. See in the code how we can convert a Float to String using binding.FloatToString. The original value can be edited by moving the slider. Each time the data changes it will run the conversion code and update any connected widgets.

It is also possible to use format strings to add more natural output for the user interface. You can see that our short binding is also converting a Float to String but by using a WithFormat helper we can pass a format string (similar to the fmt package) to provide a custom output.

package main

import (
	"fyne.io/fyne/v2/app"
	"fyne.io/fyne/v2/container"
	"fyne.io/fyne/v2/data/binding"
	"fyne.io/fyne/v2/widget"
)

func main() {
	myApp := app.New()
	w := myApp.NewWindow("Conversion")

	f := binding.NewFloat()
	str := binding.FloatToString(f)
	short := binding.FloatToStringWithFormat(f, "%0.0f%%")
	f.Set(25.0)

	w.SetContent(container.NewVBox(
		widget.NewSliderWithData(0, 100.0, f),
		widget.NewLabelWithData(str),
		widget.NewLabelWithData(short),
	))

	w.ShowAndRun()
}

列表数据/List Data

To demonstrate how more complex types can be connected we will look at the List widget and how data binding can make it easier to use. Firstly we create a StringList data binding, which is a list of String data type. Once we have a data of list type we can connect this to the standard List widget. To do so we use the widget.NewListWithData constructor, much like other widgets.

Comparing this code to the list tour You will see 2 main changes, the first is that we pass the data type as the first parameter instead of a length callback function. The second change is the last parameter, our UpdateItem callback. The revised version takes a binding.DataItem value instead of widget.ListIndexID. When using this callback structure we should Bind to the template label widget instead of calling SetText. This means that if any of the strings change in the data source each affected row of the table will refresh.

package main

import (
	"fmt"

	"fyne.io/fyne/v2"
	"fyne.io/fyne/v2/app"
	"fyne.io/fyne/v2/container"
	"fyne.io/fyne/v2/data/binding"
	"fyne.io/fyne/v2/widget"
)

func main() {
	myApp := app.New()
	myWindow := myApp.NewWindow("List Data")

	data := binding.BindStringList(
		&[]string{"Item 1", "Item 2", "Item 3"},
	)

	list := widget.NewListWithData(data,
		func() fyne.CanvasObject {
			return widget.NewLabel("template")
		},
		func(i binding.DataItem, o fyne.CanvasObject) {
			o.(*widget.Label).Bind(i.(binding.String))
		})

	add := widget.NewButton("Append", func() {
		val := fmt.Sprintf("Item %d", data.Length()+1)
		data.Append(val)
	})
	myWindow.SetContent(container.NewBorder(nil, add, nil, nil, list))
	myWindow.ShowAndRun()
}

In our demo code there is an “Append” Button, when tapped it will append a new value to the data source. Doing so will automatically trigger the data change handlers and expand the List widget to display the new data.

---
